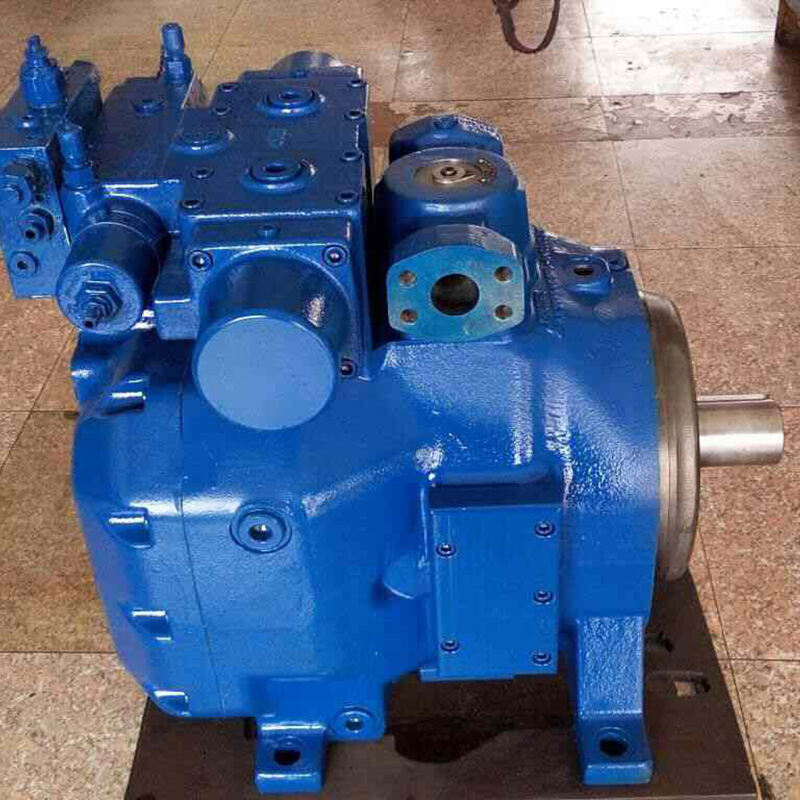

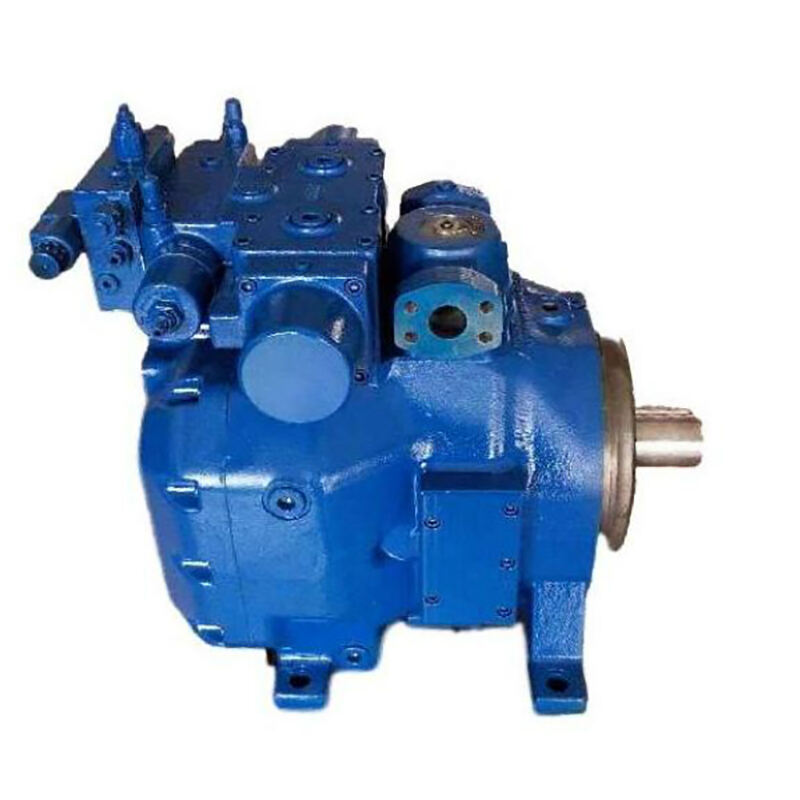

A2V Variable Displacement high pressure Pump 250, 355, 500, 1000

Capacity(cm³/rev): 250, 355, 500, 1000

Control mode: HD, HDE, HS, EO, MA

Rated pressure 350bar peak pressure 400bar

Axial piston unit of bent axis design with variable displacement, for hydrostatic drives in closed and semiclosed, and open circuits.

Maximum flow is proportional to the drive speed at displacement and is infinitely variable at constant drive speed. Comprehensive control programme for every control and regulating function.

New, simplified high performance rotary group with enhanced technical data and well-proven spherical control area.

Heavy duty rolling bearings for intermittent high pressure operation.

For continuous duty at high pressures, hydrostatic bearings are available.

Operation on fire-resistant fluids is possible (please consult us).

Improved port plate design and compact design reduces noise level by 5 dBA.

Complete primary units with all auxiliary devices for closed circuits

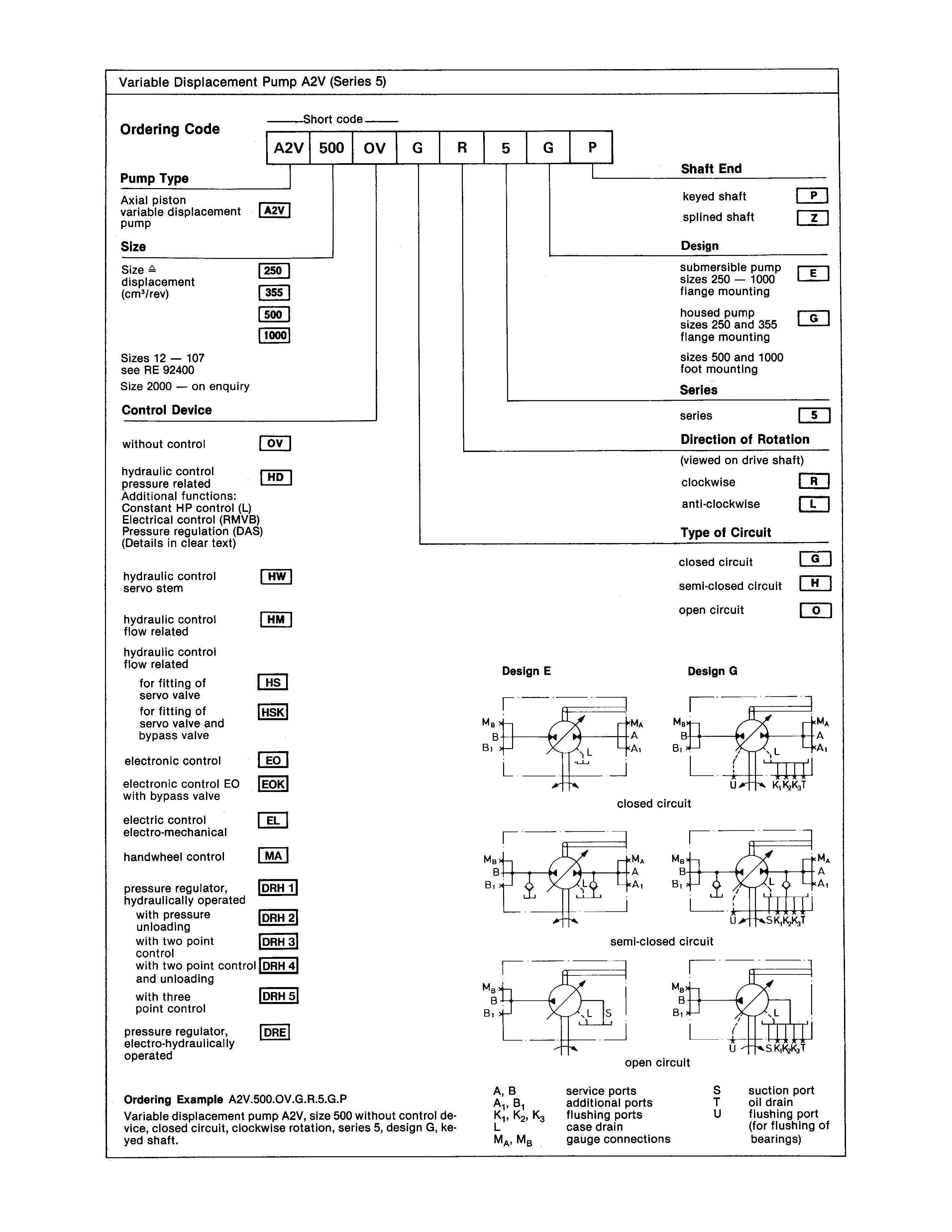

Product Model: A2V500HDOR5GP

Capacity(cm3/rev): 250, 355, 500, 1000

Control mode: HD, HDE, HS, EO, MA

Rated pressure 350bar peak pressure 400bar

Variable displacement axial piston pump for open and closed loops.

Widely used in press system and Marine hydraulic pump.

Rated pressure 350bar peak pressure 400bar

Axial piston unit of bent axis design with variable displacement, for hydrostatic drives in closed and semiclosed, and open circuits.

Supplied pumps to the industry for over 20 years.

To select the right pump for customer's application

Can supply the domestic and global market demand

Fast response and 10 days for production
