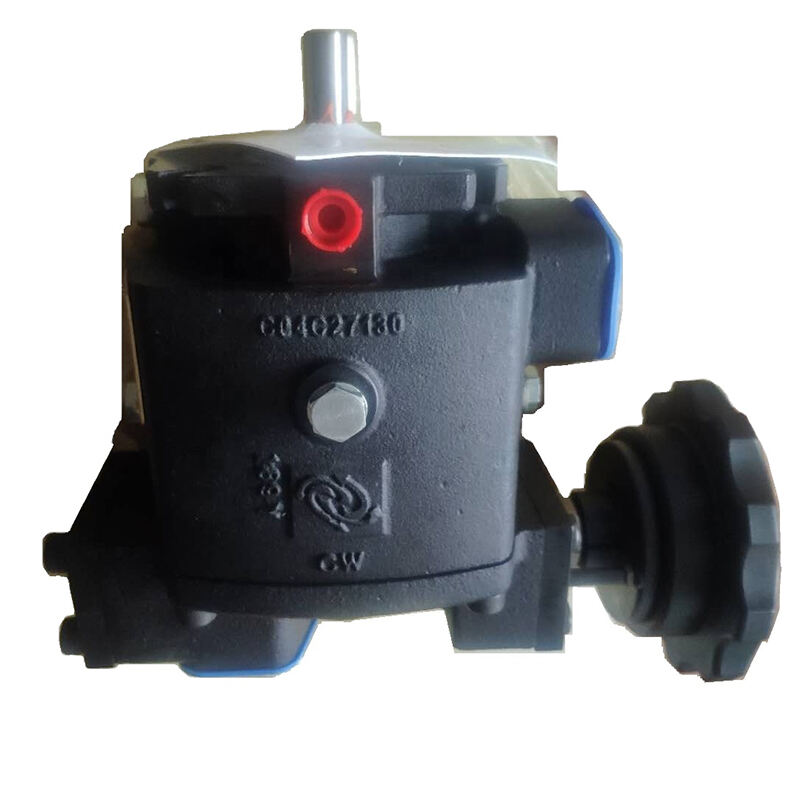

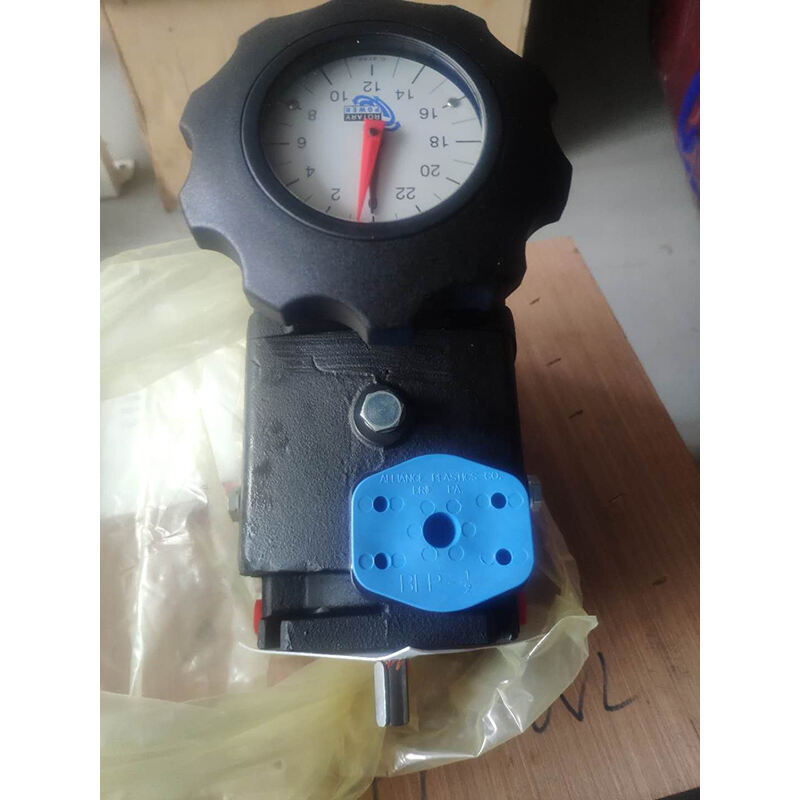

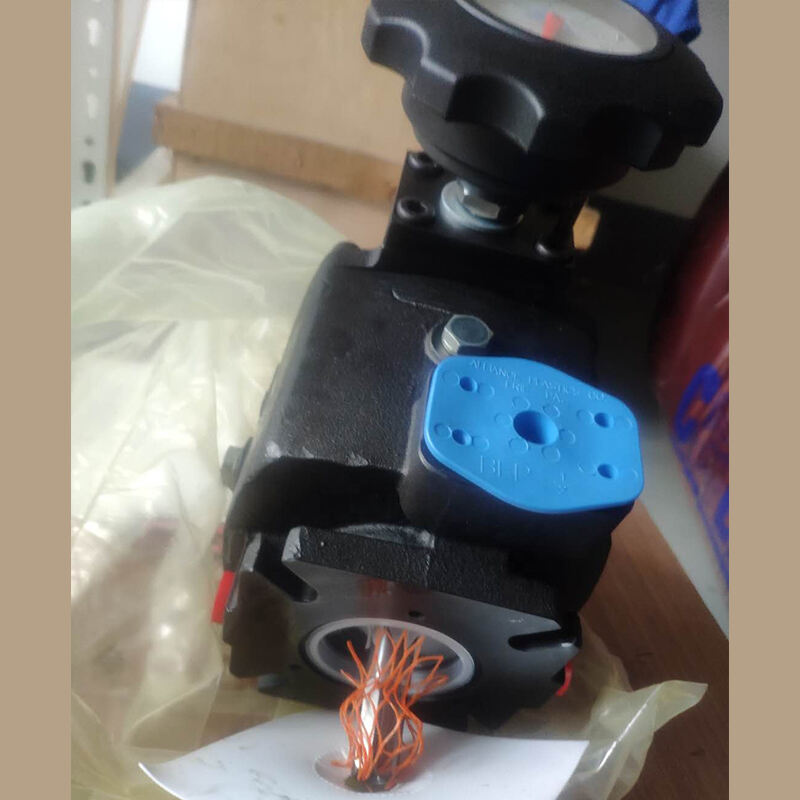

Rotary Power polyurethane metering pump for foaming machine C01, C04, C07, C20

Function: Deliver the Isocyanate and Polyol media in a particular ratio

Brand: Rotary Power

Place of origin：Britain

Size(cc/rev) : 2, 6, 12, 33

Weight (kg) : 16, 18, 20, 30

Maximum working pressure: 25Mpa

High pressure metering pump for PU

C Range metering pumps for P.U. foam production

Axial Piston Pumps for high accuracy fluid metering with precision flow controls and high-pressure

capability. Specifically designed for the Polyurethane Industry. Capacities from 2 to 30 cm3/rev.

Size(cc/rev) : 2, 6, 12, 33

Weight (kg) : 16, 18, 20, 30

Maximum working pressure: 25Mpa

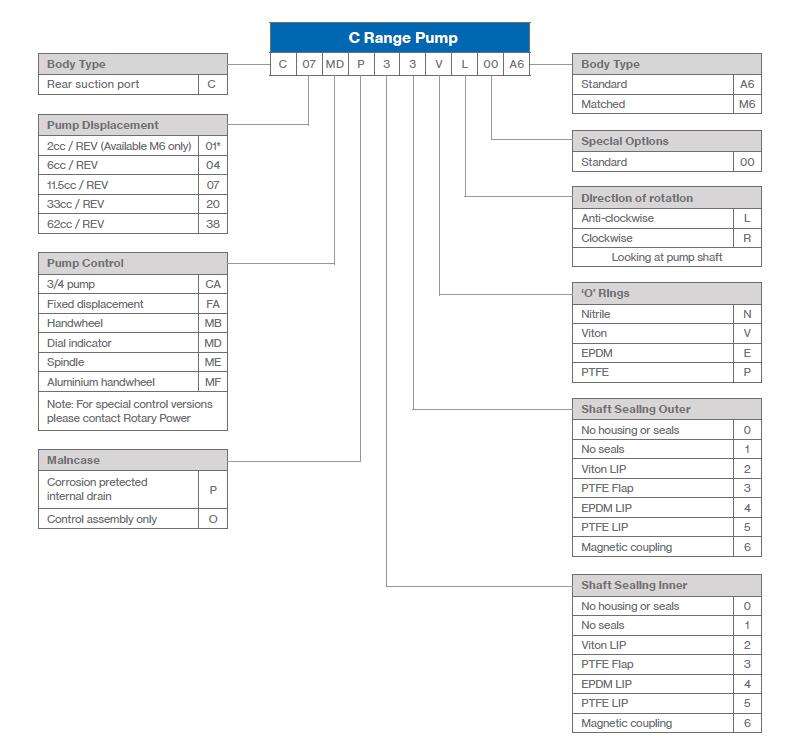

Product Model: C04MDP32VL00A6, C07MDP32VL00A6, C20MDP32VL00A6

1.Designed specifically for the Polyurethane foam industry from over 20 years application experience and development.

2.Uniform fluid temperatures throughout the pump.

3.Designed for high inlet pressure. Twin PTFE seals running on a ceramic bush allow up to 20 bar.

4.High metering accuracy. Matched and balanced control components minimise backlash errors.

5.No leakage return line, pump is internally drained.

6.Leakage indicator and lubrication ports included

7.All major components treated to minimise corrosion.

8.Cartridge shaft seal to ease service and minimise maintenance time.

It is used for conveying synthetic monomers in a high pressure metering machine, e.g. for polyurethane processing.

Suitable for most fluids, including HLP, HFA, HFB, HFC, HFD, HFR, HFE, Isocyanates and Polyols.

Supplied pumps to the P.U. foam industry for over 20 years.

To select the right pump for customer's application

Can supply the domestic and global market demand

Fast response and 10 days for production
