A2FK polyurethane fixed flow pump 2.5, 5, 10,12, 23, 28, 55, 107(cmᶟ ⁄rev)

Function: Deliver the Isocyanate and Polyol media

Size(cc/rev)：2.5, 5, 10, 12, 23, 28, 55, 107

Nominal pressure：25Mpa(250bar)

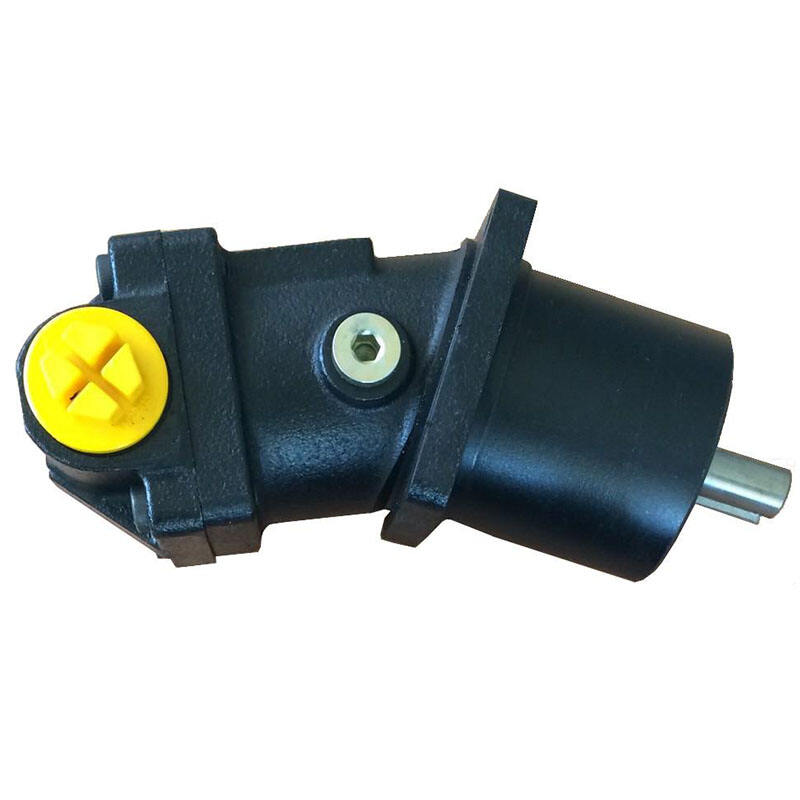

A2FK polyurethane fixed flow pump

A2FK fixed flow axial piston pump for pumping polyurethane components(Polyol and Isocyanate). This product is the core component of high pressure foaming machine, widely used in refrigerator, cold storage, wall panel, car chair, insulation pipeline and other industries.

A2FK pump is fixed displacement for pumping polyurethane and covers the displacement range 2.5-107 cm3/rev

The newest A2FK2.5R4P4 is more compact and meets the needs of small flow.

Size(cc/rev) : 2.5, 5(small), 5, 10, 12, 23, 28, 55, 107

Compared with the original imported brands (Rexroth, Krauss Maffei, Sam), we can provide high quality products based on measure equipment and reliability equipment but at lower price. Special surface treatment ensure the good performance and quality.

1. Double shaft seals eliminate oil leakage from the pump

2. Range of pump sizes to match customer applications

3. The working pressure can reach 25Mpa

4. low inlet pressure, can pump high viscosity liquid

5. Special surface treatment increases corrosion protection

6. Small flow pulsation, high volume efficiency

7. Made of special materials of biaxial seals and flushing chamber, easy to damage inspection and environmental protection

It is used for conveying synthetic monomers in a high pressure metering machine, e.g. for polyurethane processing.

Suitable for most fluids, including HLP, HFA, HFB, HFC, HFD, HFR, HFE, Isocyanates and Polyols.

Supplied pumps to the P.U. foam industry for over 20 years.

To select the right pump for customer's application

Can supply the domestic and global market demand

Fast response and 10 days for production
