A2FK polyurethane fixed flow pump 2.5, 5, 10,12, 23, 28, 55, 80,107(cmᶟ ⁄rev)

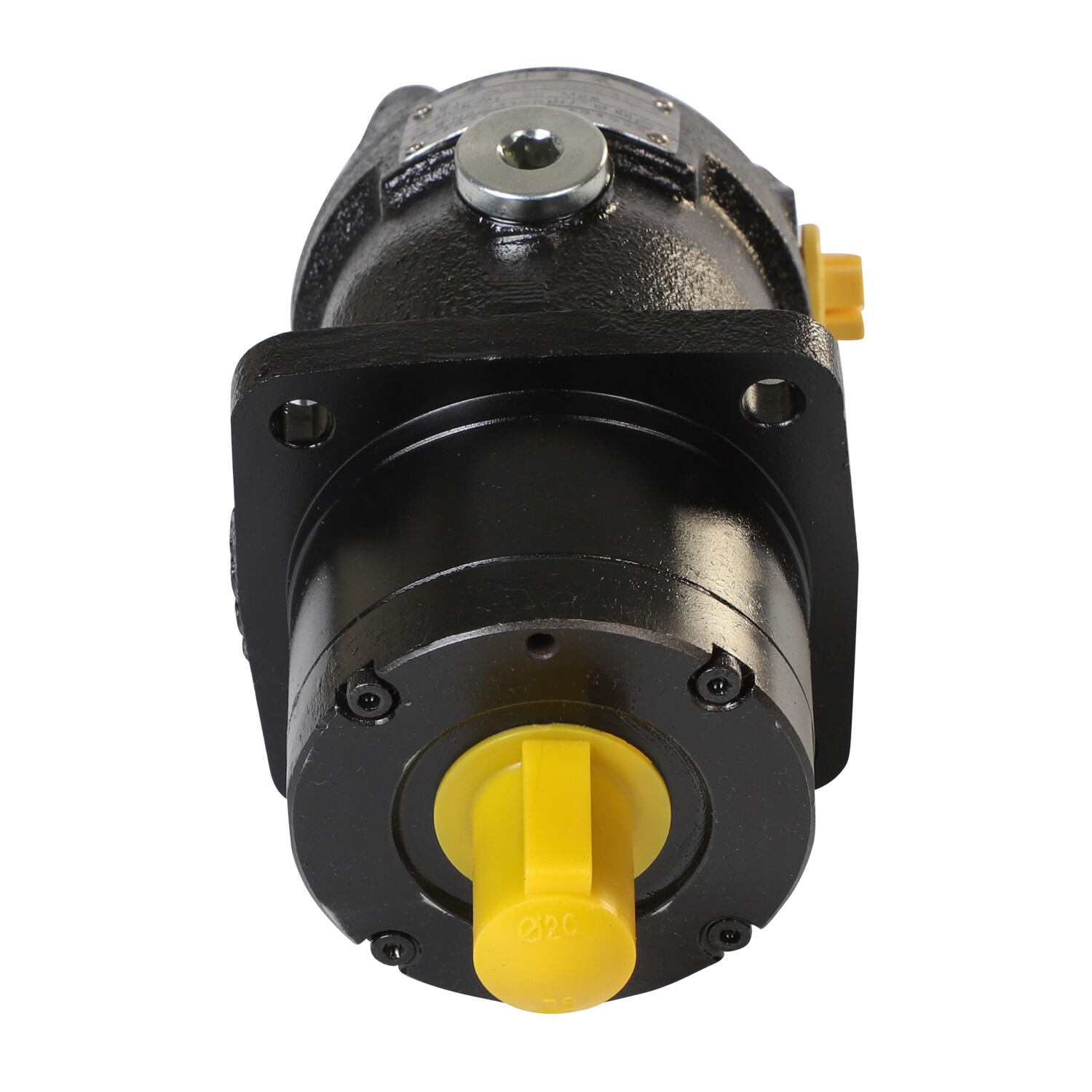

A2FK polyurethane fixed flow pump

A2FK fixed flow axial piston pump for pumping polyurethane components (Polyol and Isocyanate). The selection of materials and their surface protection were specially designed for use in polyurethane foaming systems. The pump housing contains just a small number of component parts, making it very compact and easy to service. Low weight, quiet operation small flow pulsation, and high volume efficiency are the advantages of A2FK piston pumps in bent-axis design. A2FK series covers the displacement range from 2.5 to 107 cmᶟ ⁄rev. It is a particularly economical choice for a wide range of common applications.

This product is the core component of high pressure foaming machine, widely used in refrigerator, cold storage, wall panel, car chair, insulation pipeline and other industries.

1. Double shaft seals eliminate oil leakage from the pump

2. Range of pump sizes to match customer applications

3. The working pressure can reach 25Mpa

4. low inlet pressure, can pump high viscosity liquid

5. Special surface treatment increases corrosion protection

6. Small flow pulsation, high volume efficiency

7. Made of special materials of biaxial seals and flushing chamber, easy to damage inspection and environmental protection

It is used for conveying synthetic monomers in a high pressure metering machine, e.g. for polyurethane processing.

Suitable for most fluids, including HLP, HFA, HFB, HFC, HFD, HFR, HFE, Isocyanates and Polyols.

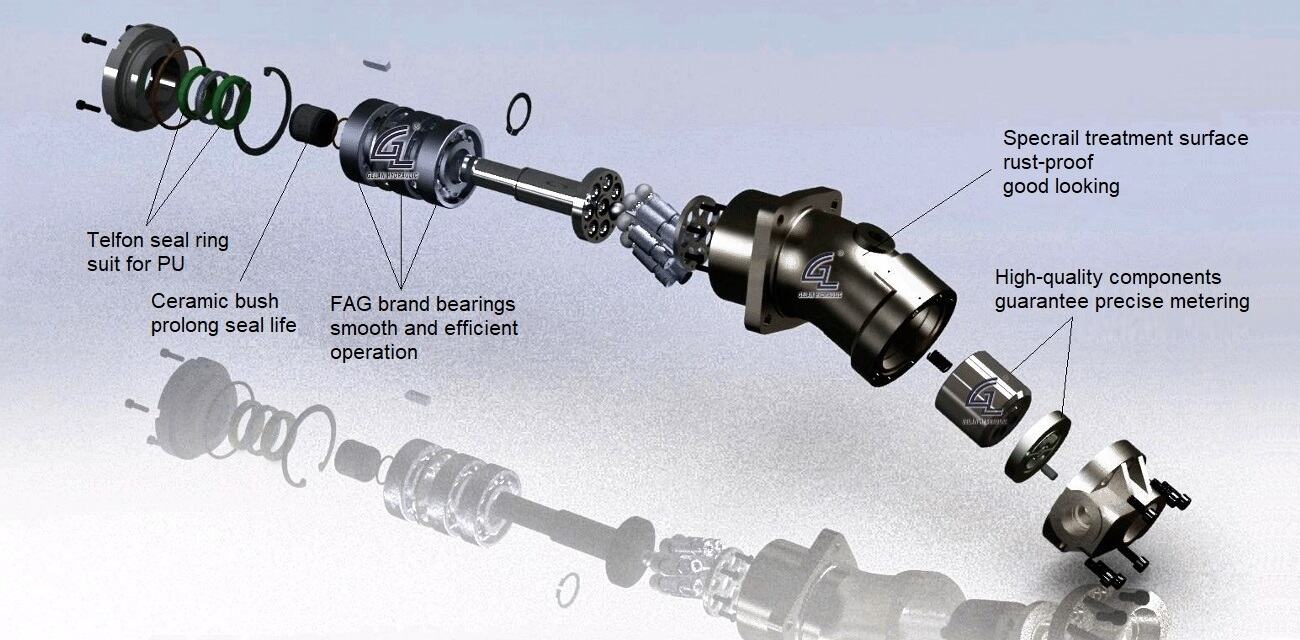

High-Precision Machining: All core parts are machined by high-precision equipment, ensuring the fit accuracy and sealing performance of the pump body.
FAG Bearings: Adopting German FAG brand bearings ensures smooth rotation, low noise, and long service life.
